TUBE / VARNISH COATING

Tube Varnish Coating System for Continuous Production

The VR Coatings Tube/Varnish Coating System is a basic airless hot spray coating system for continuous production. Features a closed spray chamber with over-sprayed coating material re-cycling system, fumes exhaust system, and water spraying chamber to remove traces of coating material.

Request Quote Download Datasheet

CE CertifiedATEX ExISO · TUVMade in India 🇮🇳

Technical Specifications

System Type	Basic Airless Hot Spray Coating System
Spray Chamber	Cube-shaped, tube enters via round opening at end wall
Spray Ring	Circular spraying ring with adjustable airless spray nozzles
Nozzle Adjustment	Adjustable spraying distance from tube outer surface
Over-Spray Recycling	Collected at chamber bottom, re-circulated via Hippo pump & bag filter
Fumes Collection	Exhaust blower at chamber top → suction chambers → water spray chamber
Tanks Included	Coating material (paint), solvent, and water (500L recirculating)
Certifications	CE · ATEX

Key Features

Closed spray chamber prevents overspray waste

Over-sprayed coating material recycling system

Fumes exhaust and collection system

Water spraying chamber for trace removal

Adjustable spray nozzles for different tube OD sizes

5-step fume collection and filtration process

Applications & Industries

Steel Tube & Pipe Coating

Continuous Production Lines

Anti-Corrosion Coatings

Internal & External Varnish

Product Videos

Varnish Tube Coating System

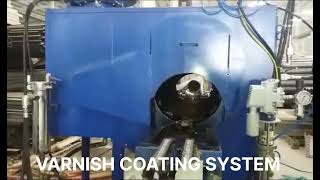

Varnish Coating System

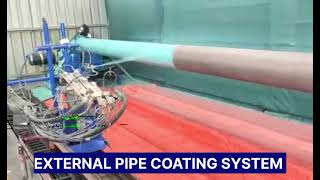

External Pipe Coating System

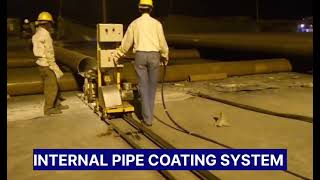

Internal Pipe Coating System

2K External Pipe Coating

Frequently Asked Questions

Common questions about the TUBE / VARNISH COATING

What tube sizes can the coating system handle?

The spray ring nozzles are adjustable and mounted on adjustable rods, so the system can be configured for different tube ODs. Contact us with your tube size range for a specific recommendation.

Is the over-spray recycled?

Yes. Over-sprayed coating material is collected at the chamber bottom and re-circulated to the coating material tank via a HIPPO pump and bag-type low-pressure filter, minimising waste.
