2K Hot Airless CHEETAH Two Component Hot Airless Spray Painting Equipment by VR Coatings

2-Component Hot Airless System

CHEETAH

Two-Component Hot Airless Spray Painting Equipment

The CHEETAH is engineered for tough working conditions and is suitable for two-component high-viscosity, solventless coatings, semi-solid coatings, marine coatings, and all types of protective coatings. Features online ratio monitoring, electrically heated oil-jacketed tanks, and a modular design to achieve various mixing ratios from 1:1 up to 4:1.

Request Quote Download Datasheet

CE CertifiedATEX ExISO · TUVMade in India 🇮🇳

Technical Specifications

Mixing Ratio	1:1 \| 1.4:1 \| 2:1 \| 2.5:1 \| 3:1 \| 4:1
Transfer Ratio	45:1 \| 55:1 \| 65:1 \| 55:1 \| 45:1 \| 35:1
Discharge per Cycle (cc)	450 \| 385 \| 330 \| 352 \| 450 \| 570
Air Motor Piston Ø (mm)	350 (all models)
Max Output Pressure @ 6 bar (bar)	270 \| 330 \| 390 \| 330 \| 270 \| 210
Air Consumption N litres/min @ 15 cycles	2425 (all models)
Certifications	CE · ATEX

Key Features

Pneumatically sensed high-performance air motor

Fixed volume mixing ratio — accurate and repeatable

Modular design for various mixing ratios (1:1 to 4:1)

Online ratio monitoring

Electrically heated oil-jacketed tank

Optional: PLC monitoring with digital display and auto flush

Stainless steel hydraulic body — ice-free air motor

Applications & Industries

High-Viscosity Epoxy Coating

Marine & Offshore

Solventless 2K Coatings

Oil & Gas Structures

Defence

Product Videos

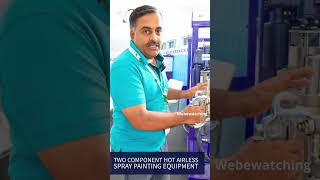

Two Component Spray System

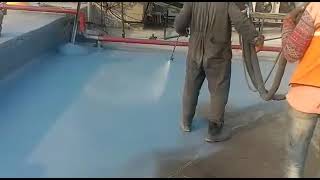

2K Painting Application

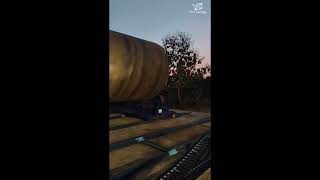

2K External Pipe Coating

Frequently Asked Questions

Common questions about the CHEETAH

What mixing ratios does the CHEETAH support?

The CHEETAH supports mixing ratios of 1:1, 1.4:1, 2:1, 2.5:1, 3:1, and 4:1 through its modular design. Custom ratios can be achieved on request.

Does the CHEETAH have heating capability?

Yes, the CHEETAH features electrically heated oil-jacketed tanks and can be equipped with enhanced high-flow inline heaters with individual temperature control.

Is the CHEETAH suitable for pipe coating?

Yes, the CHEETAH is frequently used for internal and external pipe coating applications, particularly with two-component epoxy and glass-flake materials.

What is online ratio monitoring?

The CHEETAH includes real-time monitoring of the mixing ratio while spraying. If the ratio drifts out of tolerance, an alarm is triggered to alert the operator.
