DRAGON

Passive Fire Protection High Performance Airless Spray System

The DRAGON is a high-duty airless plural-component Passive Fire Protection (PFP) spraying system. Specifically designed for seamless application of intumescent paint coatings, with modular configuration to operate custom mixing ratios. Ideal for structural steel fire protection in industrial, commercial, and offshore projects. CE and ATEX certified.

Request Quote 📄 Download Datasheet

CE Certified ATEX Ex ISO · TUV Made in India 🇮🇳

Technical Specifications

Model	DRAGON 1:1 \| DRAGON 2.28:1 \| DRAGON 2.33:1 \| DRAGON 2.35:1 \| DRAGON 2.5:1 \| DRAGON 2:1
Pressure Ratio	73:1 \| 58:1 \| 58:1 \| 58:1 \| 57:1 \| 67:1
Discharge/cycle (CC)	302 \| 371 \| 377 \| 377 \| 395 \| 339
Pump Combination (Ø)	Ø350-(151/151) \| Ø350-(145-113/113) \| Ø350-(151-113/113) \| Ø350-(151-113/113) \| Ø350-(169-113/113) \| Ø350-(113-113/113)
Max Inlet Air Pressure	6 BAR
Max Output Pressure	438 \| 348 \| 348 \| 348 \| 342 \| 402 BAR
Mixing Ratio	1:1 \| 2.28:1 \| 2.33:1 \| 2.35:1 \| 2.5:1 \| 2:1
Supply	415V / 3Ø / 50Hz
Reference Intumescent Material	Jotun 1709/Carboline3000SP \| PITT CHAR–NX \| PITT CHAR–XP/Chartek 7E \| Jotun Steel Master 1200HPE \| Hempafire XTR 100 \| Firetex M90/02
Certifications	CE · ATEX

Key Features

Essential measured temperature and pressures with analog reference gauges on panel

Mixing block and outlet manifold direct flush option

Flush-type pressure transmitter to cut off system in unhealthy spray conditions

Agitator speed controlled as per requirement

Special VPR to protect equipment from voltage surges and fluctuations

Individual controlled heaters for material tanks

High discharge transfer pumps for efficient material transfer from pails

Enhanced high-flow inline heaters with individual temperature control

Double static mixture for precise 100% material mixing

Applications & Industries

The DRAGON is widely used across the following industries:

Passive Fire Protection

Structural Steel

Offshore Platforms

Oil & Gas

Power Generation

Product Videos

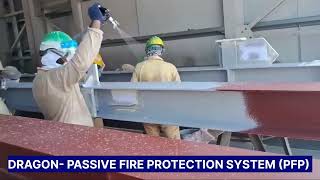

DRAGON Passive Fire Protection System (PFP)

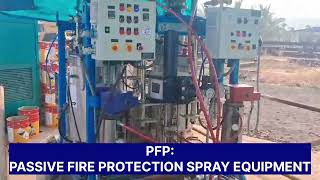

PFP Spray Equipment in India

Frequently Asked Questions

Common questions about the DRAGON

Which intumescent coatings can the DRAGON apply?

The DRAGON is validated for major PFP brands including Jotun Steelmaster, Carboline Chartek, PITT CHAR, Hempafire XTR 100, and Firetex M90/02.

What mixing ratios does the DRAGON support?

The DRAGON is available in 6 configurations: 1:1, 2:1, 2.28:1, 2.33:1, 2.35:1, and 2.5:1 to match the specific PFP material requirements.

Is the DRAGON suitable for offshore PFP applications?

Yes. The DRAGON is CE and ATEX certified for use in hazardous areas, including offshore platforms and refineries.
