600 BAR

Heavy Duty Single-Component Airless

RHINO

Heavy Duty Airless Spray Painting Equipment

The RHINO is engineered for the toughest working conditions. Suitable for high-viscosity, solventless, low-solvent coatings, semisolid coating, marine coating, and protective applications on bridges, pipelines, railway bogies, and offshore structures. Features a pneumatically sensed stall-free air motor with output pressures up to 600 BAR.

Request Quote 📄 Download Datasheet

CE Certified ATEX Ex ISO · TUV Made in India 🇮🇳

Technical Specifications

Type	28:550 \| 35:275 \| 50:210 \| 55:275 \| 60:180 \| 60:350 \| 70:150 \| 75:210 \| 100:210
Pressure Ratio	28:1 \| 35:1 \| 50:1 \| 55:1 \| 60:1 \| 60:1 \| 70:1 \| 75:1 \| 100:1
Output per Cycle (cc)	550 \| 275 \| 210 \| 275 \| 180 \| 350 \| 150 \| 210 \| 210
Air Motor Piston Ø (mm)	300 \| 250 \| 250 \| 300 \| 250 \| 350 \| 250 \| 300 \| 350
Stroke Length (mm)	120 (all models)
Recommended Spray Volume @ 15 cycles (litres/min)	5.25 \| 4.1 \| 3.15 \| 4.1 \| 2.7 \| 5.25 \| 2.25 \| 3.15 \| 3.15
Max Inlet Air Pressure (bar)	6 (all models)
Max Output Pressure (bar)	168 \| 210 \| 300 \| 330 \| 360 \| 360 \| 420 \| 450 \| 600
Air Consumption N litres/min @ 15 cycles	1780 \| 1237 \| 1237 \| 1782 \| 1237 \| 2424 \| 1237 \| 1782 \| 2424
CFM @ 6 bar @ 15 cycles	62.96 \| 43.71 \| 43.71 \| 62.96 \| 43.71 \| 85.65 \| 43.7 \| 62.96 \| 85.65
Wetted Body Material	Stainless Steel (no carbon steel)
Certifications	CE · ATEX (EEC Norms EXII 2G c T4)

Key Features

Pneumatically sensed high-performance stall-free air motor

High pressure with high output discharge — up to 600 BAR

Stainless steel rust-proof hydraulic body (no carbon steel)

Easy maintenance — field-serviceable wear parts

Ice-free air motor technology — no icing at low temperatures

Durable and rugged, easy to handle

Compliance to EC and ATEX norms

9 models covering pressure ratios 28:1 to 100:1

Hard-coated piston rods for extended service life

Specially developed composite material seals

Applications & Industries

The RHINO is widely used across the following industries:

Heavy Structural Steel

Railways (Bogies & Wagons)

Oil & Gas Pipelines

Marine & Shipyard

Defence Vehicles

Wind Energy Towers

Earth Movers

Product Videos

RHINO Heavy Duty Airless Spray Equipment

Assembly of Rhino D Type

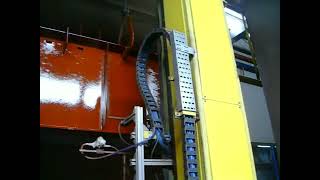

I-Beam Painting

Frequently Asked Questions

Common questions about the RHINO

What viscosity coatings can the RHINO handle?

The RHINO is specifically designed for high-viscosity, solventless, low-solvent, and semisolid coatings including marine grade epoxy, zinc-rich primers, and bituminous coatings.

What is the maximum operating pressure of the RHINO?

The RHINO 100:210 model achieves 600 BAR output pressure at 6 bar inlet air pressure.

Is the RHINO suitable for offshore use?

Yes. The RHINO is ATEX certified (Cat. EXII 2G c T4) making it safe for use in explosive atmospheres including offshore oil and gas platforms.

How many spray guns can the RHINO feed?

Depending on the model and coating viscosity, the RHINO can feed 1–3 spray guns simultaneously. Contact our team for specific configurations.
