Touch Screen VRC MIX Low Medium Pressure Variable Ratio Electronic Two Component System

Variable Ratio Electronic 2K System

VRC MIX (L/M)

Advanced Variable Ratio Electronic Two Component System — Low & Medium Pressure

The VRC MIX (L/M) is an advanced variable ratio electronic two-component system for low and medium pressure air spray applications. Features accurate component metering by precision geared flow meters, touch screen operation interface, online mixing ratio assurance, pot life monitoring, material usage reporting, and multi-colour quick-change capability.

Request Quote Download Datasheet

CE Certified ATEX Ex ISO · TUV Made in India 🇮🇳

Technical Specifications

Mixing Ratio Range	Up to 15.0:1 (in 0.1 increment)
Accuracy Tolerance	Down to 1% user-settable
Flow Rate	0.1 to 4 litres per minute
Maximum Fluid Pressure	Air spray system — 30 bars
Air Pressure Requirement	0–7 bars
Electrical Power	230V AC 50Hz Single Phase
Multi Colour Application	Colour, hardeners, solvents — recipes stored
Flushing	Manual + auto programmable sequential air-solvent purge
Material Usage Reporting	Accumulative + daily consumption
Pot Life Monitoring	Pot life of mixed material monitored
Pressure Monitoring	Online system health checking
Operator Interface	Touch screen graphical display with audio-visual alarm
Communication (Optional)	SCADA
Certifications	CE · ATEX

Key Features

Accurate component metering by precision geared flow meters

Reliable online mixing ratio assurance

Easy-to-use touch screen graphical operator interface

Multi-colour operation with quick colour change

Material usage reporting — reduces waste

Paint/solvent wastage: NONE (vs HIGH in manual systems)

Colour change, configuration & setup time: VERY LOW

Labour cost: LOW

Pot life monitoring of mixed material

Audio-visual alarm system for all faults

Applications & Industries

The VRC MIX (L/M) is widely used across the following industries:

Automotive 2K Painting

Wood & Furniture

Industrial 2K Coatings

Construction

Product Videos

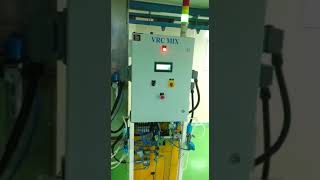

VRC MIX LP Spray Painting Application

VRC Mix LP Spray Painting

Airless Air-Assisted Painting

Frequently Asked Questions

Common questions about the VRC MIX (L/M)

What is the maximum ratio the VRC MIX L/M supports?

Up to 15:1 by volume, adjustable in 0.1 increments. This covers most two-component architectural and industrial paint systems.

Does the system alert if pot life expires?

Yes. The system monitors the pot life of the mixed material and triggers an audio-visual alarm when approaching pot life end, and auto-shuts off when pot life ends.
