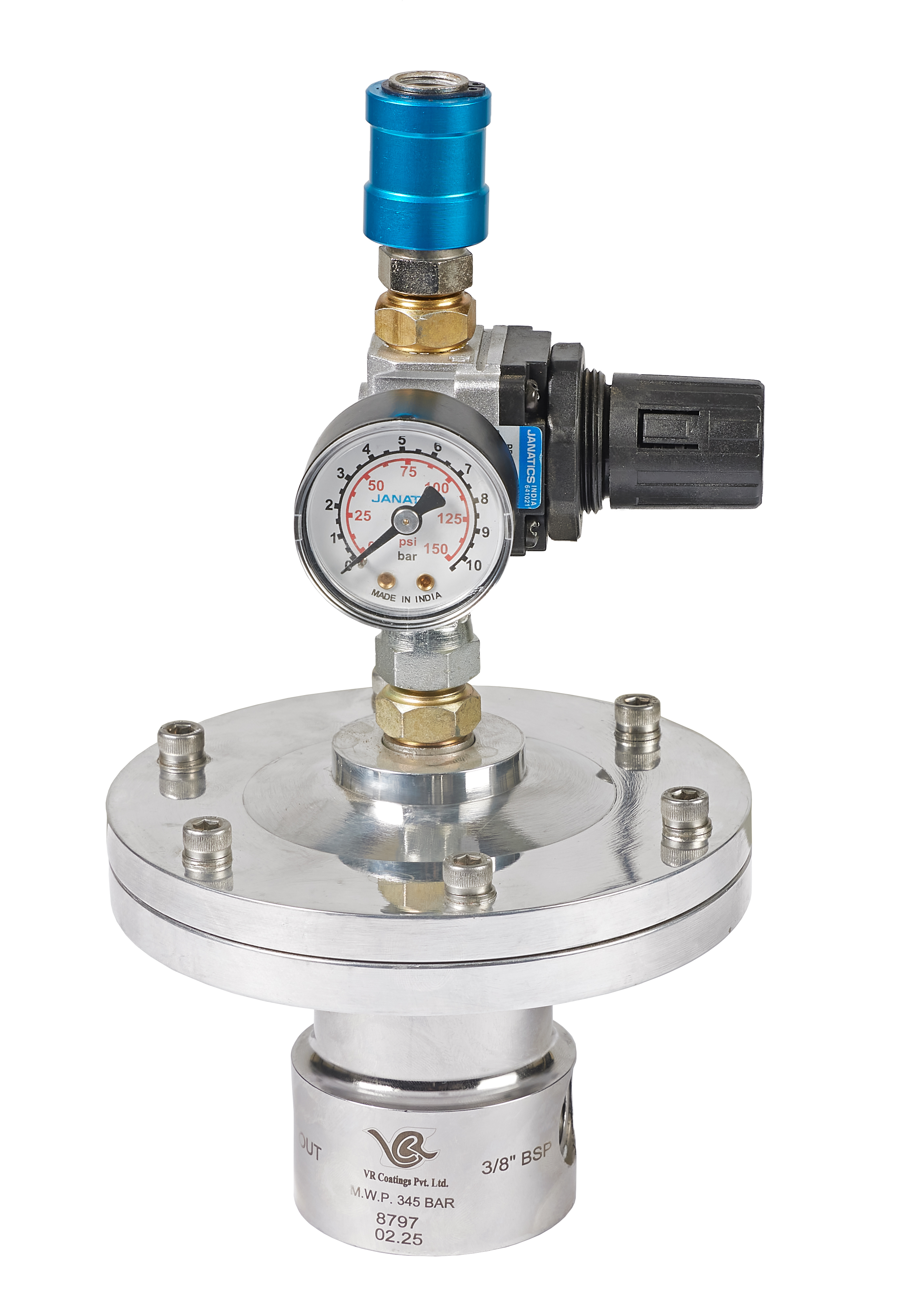

HP/LPVR Coatings High and Low Pressure Regulators
HP & LP Pressure Regulators

PRESSURE REGULATORS

High & Low Pressure Regulators — Manual & Pneumatically Operated

VR Coatings offers a complete range of pressure regulators for spray painting and fluid handling systems. Includes High Pressure Regulators (350 BAR), Low Pressure Regulators (18 BAR), Back Pressure Regulators, and Multi-Plate Regulators (400 BAR inlet). Manual and pneumatically operated versions. All feature Tungsten Carbide seats.

Request Quote 📄 Download Datasheet
CE CertifiedATEXISO · TUV

Technical Specifications

HP Regulator — Max Inbound Pressure350 bar
HP Regulator — Regulator Pressure30 to 290 bar
HP Regulator — Max Flow6 lpm
HP Regulator — Ports3/8" BSP in, 3/8" BSP out, 1/4" BSP gauge
LP Regulator — Max Inbound Pressure18 bar
LP Regulator — Regulator Pressure3–7 bar
LP Regulator — Max Flow8 lpm
LP Regulator — Wetted Parts304 SS, Aluminium, Tungsten Carbide valve, PTFE
HP Back Pressure — Max Inbound350 bar
LP Back Pressure — Max Flow18 lpm
Multi-Plate — Max Fluid Inlet400 bar
Multi-Plate — Output Pressure16 to 320 bar (2 or 4 plate)
CertificationsCE · ATEX

Key Features

HP Regulator: up to 350 BAR inbound, 290 BAR output
LP Regulator: 18 BAR inbound, 3–7 BAR output
Back Pressure Regulators for circulation systems
Multi-Plate: 400 BAR inlet, configurable 16–320 BAR output
All models: Tungsten Carbide seat for exceptional wear resistance
Manual and pneumatically operated versions available
304 Stainless Steel and Aluminium construction
PTFE sealing throughout for chemical compatibility

Product Videos

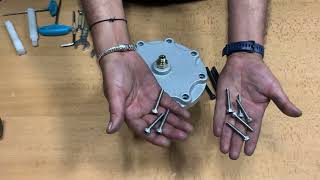

Assembly of HP Regulator

Assembly of HP Regulator

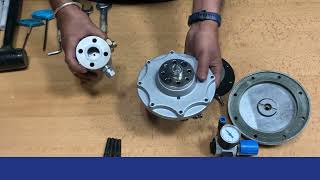

Dismantling of HP Regulator

Dismantling of HP Regulator

FAQs — PRESSURE REGULATORS

What is a back pressure regulator used for?
A back pressure regulator (BPR) maintains a set back pressure in a paint circulation loop. This prevents sedimentation and keeps paint uniformly mixed throughout the circulation line.
What is a multi-plate regulator?
A multi-plate regulator provides multiple independently regulated pressure zones from a single high-pressure inlet. Used in systems requiring different pressures for different spray zones or guns.
