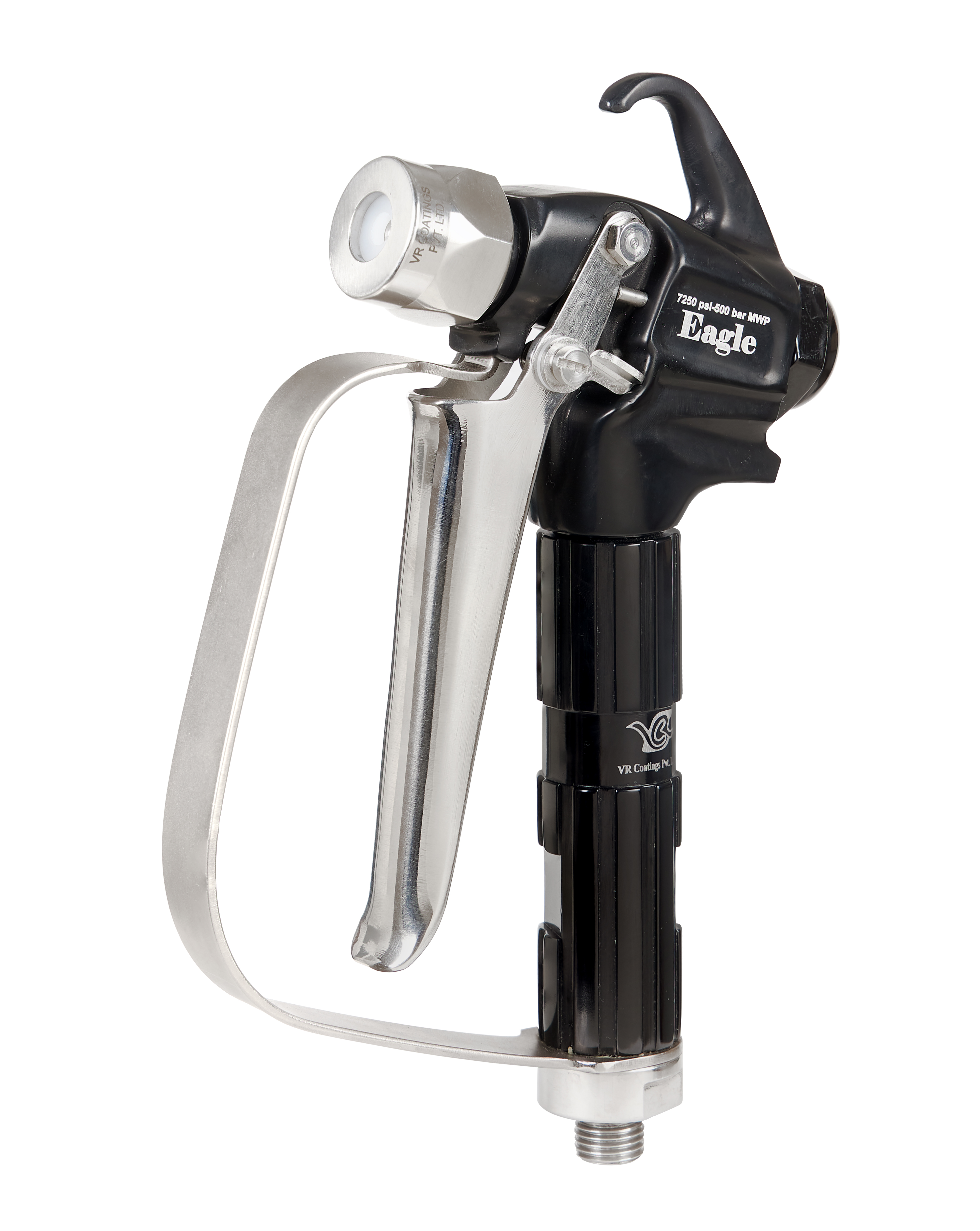

500 BAREAGLE 500 BAR Airless Manual Spray Gun by VR Coatings
500 BAR Manual Airless Spray Gun

EAGLE Spray Gun

Airless Manual Spray Gun — Highest Pressure in Range

The EAGLE is the highest-pressure manual airless spray gun in the VR Coatings range. Rated at 500 BAR, it is engineered for the most demanding heavy-duty coatings including high-build epoxy, bituminous, zinc-rich primers, and protective coatings on structural steel, bridges, offshore platforms, and oil and gas infrastructure.

Request Quote ← All Accessories
CE Certified ATEX ISO · TUV

Technical Specifications

Max Working Pressure500 BAR
Inlet Ports¼" BSP (F)
Tip Connection7/8" UNF
Wetted Parts304 Stainless Steel, Tungsten Carbide Valve, PTFE
Gun Body304 Stainless Steel
CertificationsCE · ATEX

Key Features

500 BAR maximum working pressure — highest in range
304 Stainless Steel body for maximum corrosion resistance
Tungsten Carbide valve for exceptional wear resistance
7/8" UNF tip connection for standard reversible tips
¼" BSP (F) inlet port
PTFE wetted sealing for chemical compatibility
CE & ATEX certified for hazardous area use

Product Videos

Spray Gun Dismantling (English) — VR Coatings video

Spray Gun Dismantling (English)

Airless Spray Gun Assembly (English) — VR Coatings video

Airless Spray Gun Assembly (English)

FAQs — EAGLE Spray Gun

What coatings is the EAGLE suitable for?
The EAGLE at 500 BAR handles the most challenging coatings — high-build epoxy, bituminous coatings, coal tar epoxy, zinc silicate, and other high-viscosity protective coatings used in offshore, structural, and pipeline applications.
What reversible tip sizes work with the EAGLE?
The EAGLE uses 7/8" UNF tip connections — compatible with standard VRC and Graco-style reversible tips. Contact us for the recommended tip size for your specific coating.
