200L Drum

Drum Press Dispensing Equipment

DRUM PRESS

Medium & Heavy Duty Heated and Cold Airless Drum Press Dispensing/Transfer Equipment

The DRUM PRESS is equipped with medium or heavy duty range of pumps and is suitable for semi-solid and pasty materials including grease, sealants, and adhesives. Features high flow rate pumps, priming piston (shovel) type suction for high-viscous fluids, auto shut-off on drum empty, and drum capacity up to 200 litres.

Request Quote 📄 Download Datasheet

CE Certified ATEX Ex ISO · TUV Made in India 🇮🇳

Technical Specifications

Type	28:550 \| 28:920 \| 30:150 \| 40:110 \| 55:275 \| 60:350 \| 65:175 \| 75:210
Pressure Ratio	28:1 \| 28:1 \| 30:1 \| 40:1 \| 55:1 \| 60:1 \| 65:1 \| 75:1
Discharge per Cycle (cc)	550 \| 920 \| 150 \| 110 \| 275 \| 350 \| 175 \| 210
Air Motor Piston Ø (mm)	300 \| 350 \| 160 \| 160 \| 300 \| 350 \| 250 \| 300
Stroke Length (mm)	120 \| 200 \| 120 \| 120 \| 120 \| 120 \| 120 \| 120
Recommended Volume @ 10 cycles/min (lpm)	5.5 \| 9.2 \| 1.5 \| 1.1 \| 2.75 \| 3.5 \| 1.75 \| 2.1
Max Inlet Air Pressure (bar)	6 (all models)
Max Output Pressure @ 6 bar (bar)	168 \| 168 \| 180 \| 240 \| 330 \| 360 \| 390 \| 450
Drum Capacity	Up to 200 litres
Note	*Other ratios available on request
Certifications	CE · ATEX

Key Features

High flow rate pumps for fast material throughput

Priming piston (shovel) suction for high-viscous fluids

Auto shut-off on drum empty — prevents pump damage

Option for twin pail switchover system

Drum capacity up to 200 litres

Custom built for non-standard drum sizes

Dispensing/spraying nozzles to suit application

Available in heated and cold versions

8 pump models from 28:1 to 75:1 pressure ratio

Applications & Industries

The DRUM PRESS is widely used across the following industries:

Grease Dispensing

Sealant Application

Adhesive Dispensing

Automotive Assembly

Product Videos

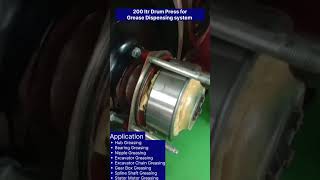

200L Drum Press Grease Dispensing

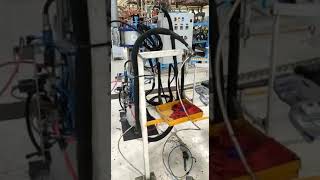

Sealant Dispensing 20L Drum Press

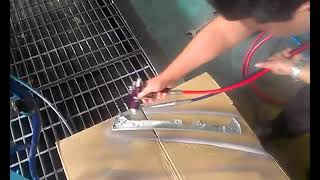

Grease Spray System

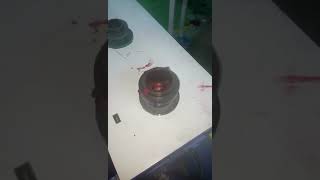

Hub Greasing

Frequently Asked Questions

Common questions about the DRUM PRESS

What materials can the Drum Press handle?

The Drum Press handles high-viscosity semi-solid and pasty materials including grease, sealants, adhesives, silicone, wax compounds, and bituminous materials.

Does the Drum Press have auto shutoff?

Yes. The Drum Press has an automatic shutoff when the drum is detected as empty, protecting the pump from running dry.

Can I get a heated Drum Press?

Yes. The Drum Press is available in both heated and cold (ambient temperature) versions. Heated versions are used for temperature-sensitive materials like silicone and polyurethane sealants.
