KINGFISHER

Conventional Air Spray Painting Gun — Silver, Blue, Gold & Red

The KINGFISHER range of conventional air spray guns offers four variants (Silver, Blue, Gold, Red) to suit different nozzle sizes and application needs. 4 BAR air pressure, 250–700 L/min air consumption. Available as gravity cup for small batches and pressure feed for production use. Light aluminium forged and die-cast bodies. Made in India.

Request Quote 📄 Download Datasheet

CE Certified ATEX ISO · TUV

Technical Specifications

SILVER — Paint Nozzle	1.4, 1.6, 1.8
SILVER — Fan Pattern	350 mm
SILVER — Material Inlet	Gravity Cup ¼" BSP (600 ml)
SILVER — Gun Body	Aluminium Pressure Die Cast
BLUE — Paint Nozzle	1.2, 1.4, 1.6, 1.8
BLUE — Fan Pattern	50 to 250 mm
BLUE — Material Inlet	Gravity Cup ¼" BSP (600 ml)
BLUE — Gun Body	Light Aluminium Forged
GOLD — Paint Nozzle	0.8, 1.0, 1.2
GOLD — Fan Pattern	50 to 250 mm
GOLD — Material Inlet	Pressure Feed Pot 3/8" BSP
GOLD — Gun Body	Light Aluminium Forged Anodized
RED — Paint Nozzle	0.8, 1.0, 1.2
RED — Fan Pattern	50 to 250 mm
RED — Material Inlet	Pressure Feed Pot 3/8" BSP
RED — Gun Body	Light Aluminium Forged
Air Pressure Recommended (all)	4 BAR
Air Consumption (all)	250–700 L/MIN
Air Inlet (all)	¼" BSP
Certifications	CE · ATEX

Key Features

SILVER: 350mm fan pattern — wide area coverage

BLUE: 50–250mm fan, versatile for general finishing

GOLD: Anodized body, pressure feed — production use

RED: Light aluminium forged, pressure feed — production

Works at 4 BAR recommended air pressure

Gravity cup (600ml) and pressure feed versions

CE & ATEX certified

Made in India

Product Videos

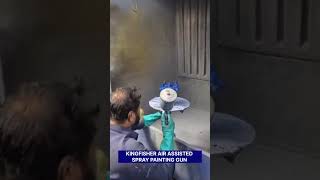

KINGFISHER Air Assisted Spray Gun

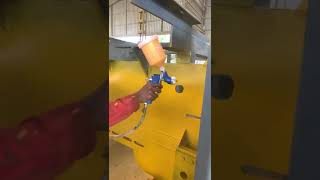

Kingfisher Cup Gun

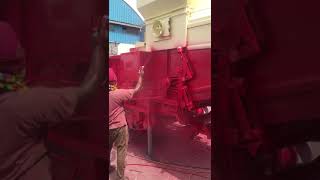

Kingfisher Pressure Feed Gun

Conventional Pressure Feed Painting

FAQs — KINGFISHER

Which KINGFISHER model is best for fine wood finishing?

The GOLD or RED variants with 0.8 or 1.0mm nozzles are ideal for fine finishing. Use with a Pressure Feed Pot for continuous production.

Can KINGFISHER guns be used for 2-component paints?

Yes, with the appropriate cleaning between Part A and Part B. Use fresh solvent flush after each session. For production 2K work, consider the VRC MIX L/M system.
