PIPE COATING SYSTEM

VR Coatings offers Internal/External pipe-coating systems suitable for high performance high build single/two component coatings for applications in several industries like Petrochemicals, oil, Refineries, large water pipelines etc.

pipe

AIRLESS INTERNAL / EXTERNAL SPRAY PAINTING OF ROTATING PIPE

Airless internal/external spray painting of rotating pipe 600 to 2500 mm*

internal6

INTERNAL COATING EQUIPMENT FOR NON-ROTATING PIPE

 Internal pipe attachments from 50 mm ID to 2.5 meters ID pipe

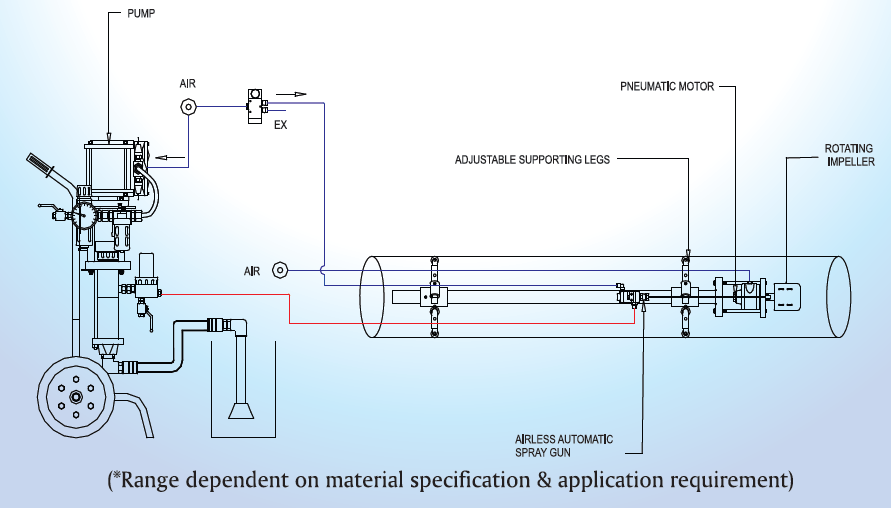

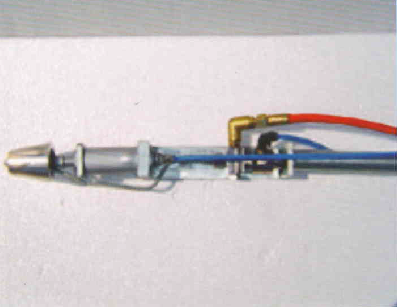

Internal spray-painting equipment for pipe 100 to 300 mm and 300 mm to 600 mm*

internal5
pipe coating2

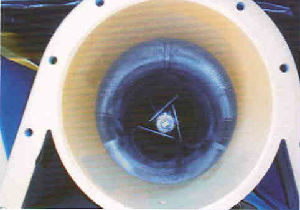

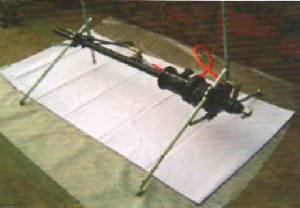

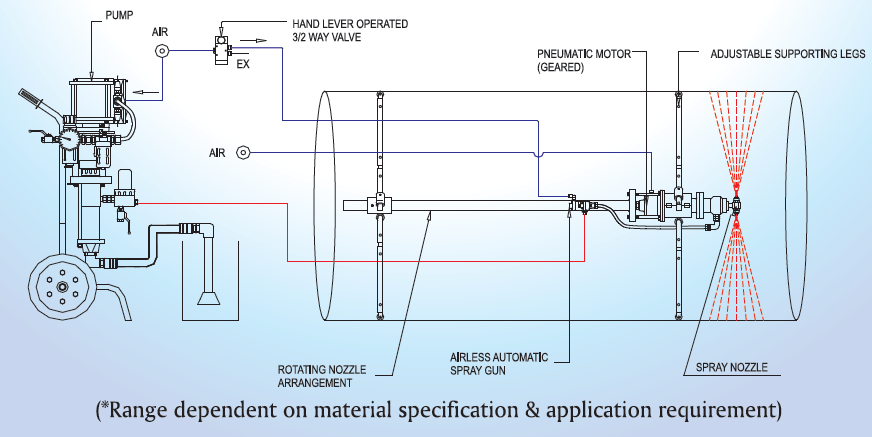

Internal airless spray painting equipment for pipe ID from 600 mm and above up to 2.5 meters.
Suitable for high-performance high build single/two component coatings

internal2
internal3
internal4
pipe coating1

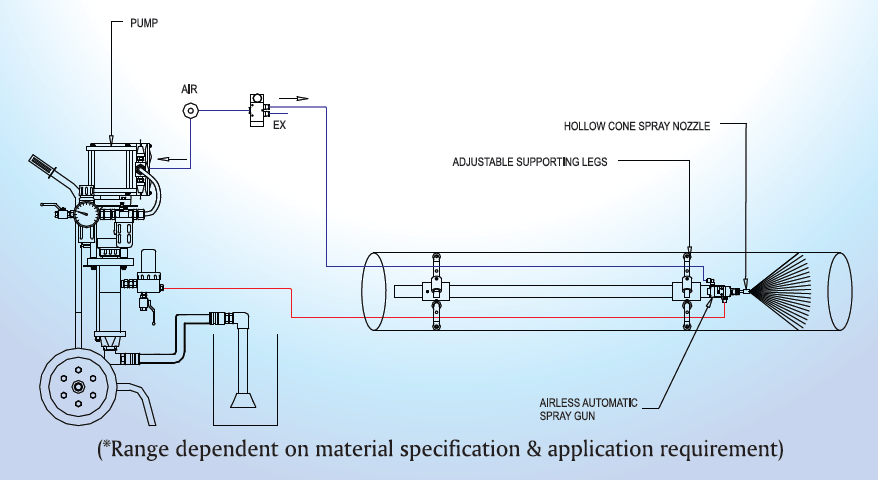

Internal airless spray-painting 50 to 150 mm ID pipe.

pipe coating3

EXTERNAL PIPE COATING SYSTEMS

external5
Features -:

Two auto gun operation – 3 times faster than manual
Servo driven rotary reciprocating arrangement
Simultaneous linear travel
Electronic variable linear speed controller

Complete steplessly variable speed control
Higher transfer efficiency compared to manual resulting in material saving
Uniform coating

Technical Specifications -:

LINEAR SPEED Up TO 5 meter/min
OSCILLATION SPEED 0.25 TO 0.9 meter/sec

external1
external2
external3
external4

TUBE COATING SYSTEMS

tube coating

The tube moving on the conveyor passes through a circular spraying ring mounted with a number of airless spray nozzles (normally).These spray nozzles are mounted on adjustable rods to adjust spraying distance from the substrate (tube outer
surface).The spray nozzle size, the spraying distance and the number of nozzles depends on
Tube size (OD),
Conveyor speed, required coating thickness,
coating material specifications(viscosity etc.).

Over-sprayed coating material is collected at the bottom of the spray chamber. A diaphragm pump is used to pump the coating material tank through a bag type low – pressure filter.

The fumes created by spray (Hot airless spray creates minimum fumes compared to any other type of spray systems) are sucked and blown out with the help of exhaust blower provided at the top of the spray chamber.

Some traces of the coating material are carried by these exhaust fumes, these fumes are first collected in suction chamber on both sides then these fumes enter in water spray chamber.
