CHEETAH

TWO COMPONENT HOT AIRLESS SPRAY PAINTING EQUIPMENT

The range is designed for tough  working conditions and is suitable for two component spray painting with high viscosity, solventless, low solvent coating, semisolid coating, marine coating, etc.

Features -:

Pneumatically sensed  Air Motor
High Flow  Rate
Stainless Steel rust proof Hydraulic              Body
Sophisticated automatic flow valve for        remote control
Electrical direct or oil jacketed  heating.

Easy to handle mounted on robust                trolley
Fixed I Variable mixing ratio
Ice Free Air Motor
Modular design to achieve various                mixing ratios
Online ratio monitoring

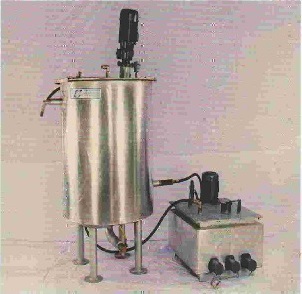

Cheetah-Two component hot airless spray painting equipment
Optional -:

PLC based monitoring system for mixing ratio, digital display and auto flush.
High viscosity transfer pump with  ram I drum  press.
Hydraulic drive motor for high flow rating at high pressure

Type 2k-
350/
79X79 X 150
2k-
350/
110X110X110
2k-
350/
110 X 110X79
2k-
350/
110X110X58
Mixing Ratio* 1:1 2:1 3:1 4:1
Transfer Ratio* 70 :1 65 :1 70:1 75:1
Output Per Cycle 300 cc 340 cc 300 cc 280 cc
Air Motor Piston Φ 350 mm 350 mm 350 mm 350 mm
Stroke Length 120mm 120mm 120mm 120mm
Recommended Spray Volume@25 cycles per min 7.5 ltr. 8.5 ltr. 7.5 ltr. 7.0 ltr.
Air Inlet Pressure Max. 6 bar 6 bar 6 bar 6 bar
Output Pressure Max. 420 bar 390 bar 420 bar 450 bar
Air Consumption N ltr/min 6800 6800 6800 6800

Application of Cheetah-Pipe coating
Pipe coating
Application of Cheetah-Floor coating
floor coating
Application of Cheetah-2k industrial painting
2k industrial painting
